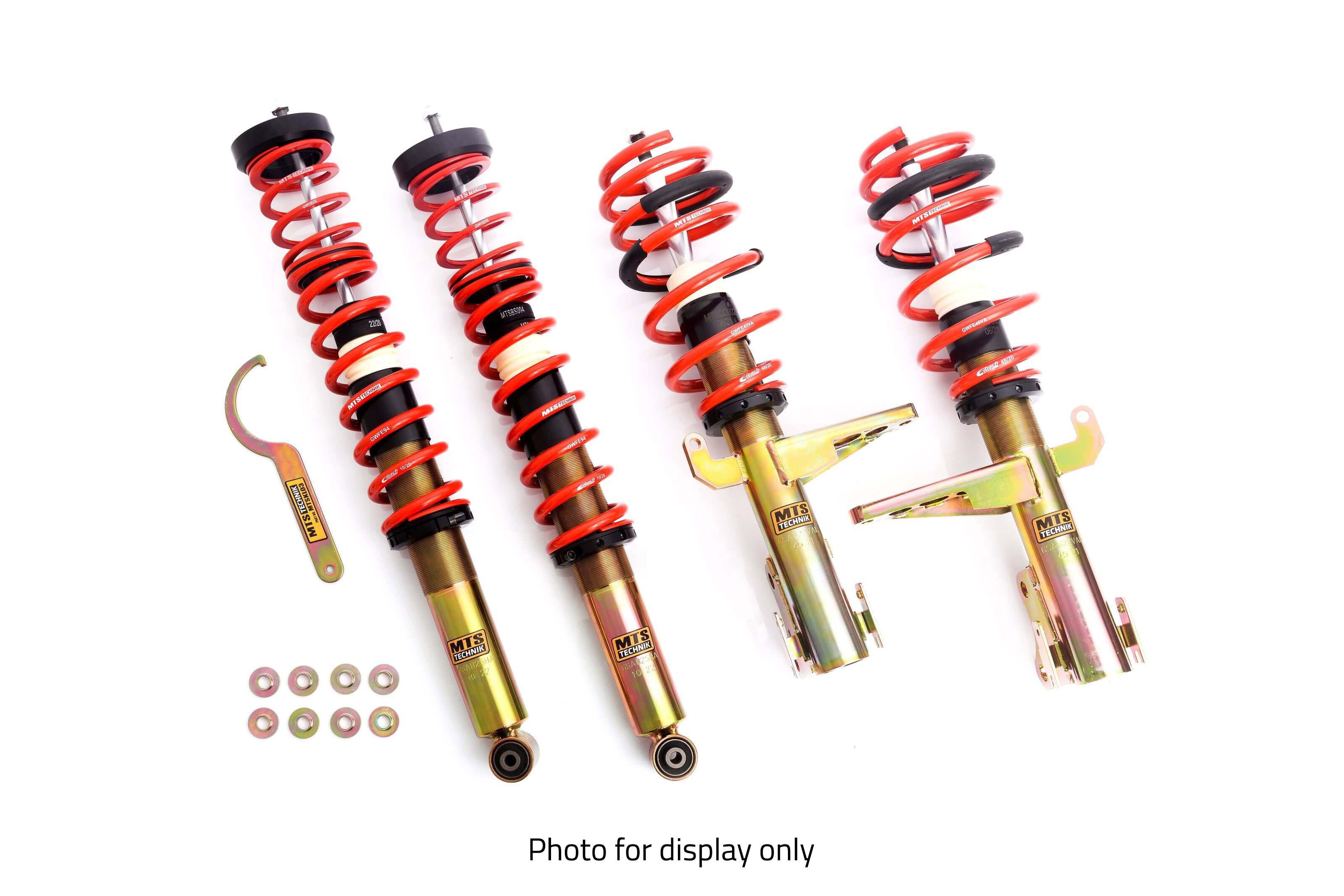

Sport Coilover Kit w/ Camber Adjust Top Mounts (Gold) for BMW 6 (E24)


Sport Coilover Kit w/ Camber Adjust Top Mounts (Gold) for BMW 6 (E24).

The Sport series suspension is an offer for lovers of significant lowering and stiffer characteristics, a set dedicated to demanding drivers.

Suitable for the following engine(s) only:
628 CSi
633 CSi
635 CSi


Tech Specs

Lowering (Front)25 - 110 mm
Lowering (Rear)25 - 90 mm
Max. Load Front Axle-980 kg
Max. Load Rear Axle-1000 kg
With Camber Adjustable Top Mounts (Front)Yes
Additional Lowering (Front)Yes

Product Description

2 year warranty 2 year warranty with no mileage limit to confirm high quality.
High quality suspension components Suspension components characterized by increased corrosion resistance and made of the highest quality materials.
Twin tube technology The use of twin-tube technology guarantees stable shock absorber performance.
Gas pressurised Pressurised gas presses the hydraulic fluid, eliminating the "foaming" effect of the oil (an undesirable and typical for oil shock absorbers phenomenon), which means higher efficiency for continuous, intensive work.

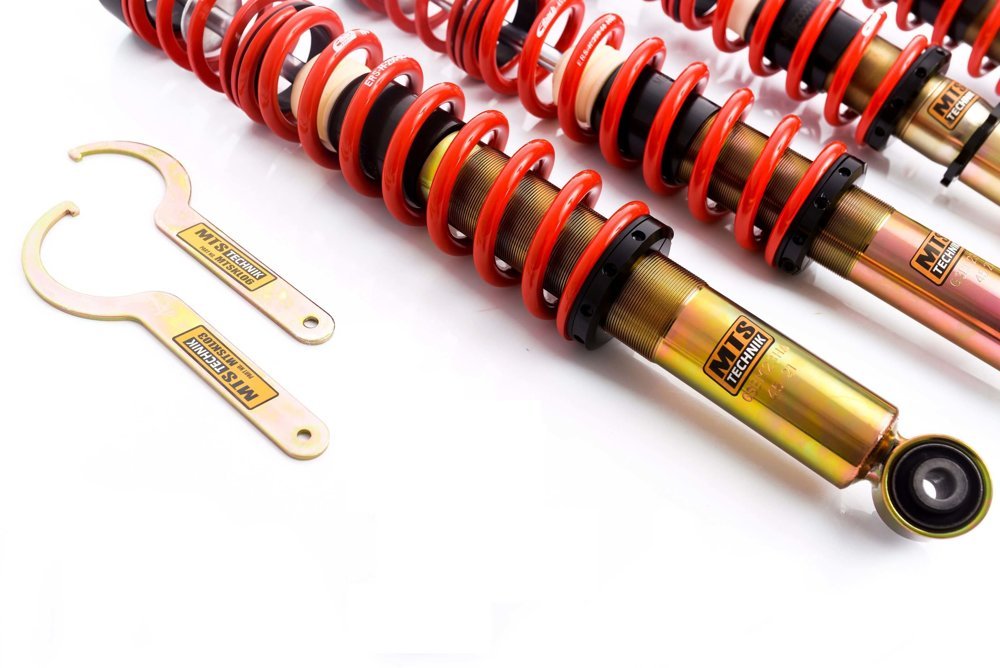

Threaded bodies Specially selected type of thread and a wide range of suspension adjustment allows optimal setting of the car height.

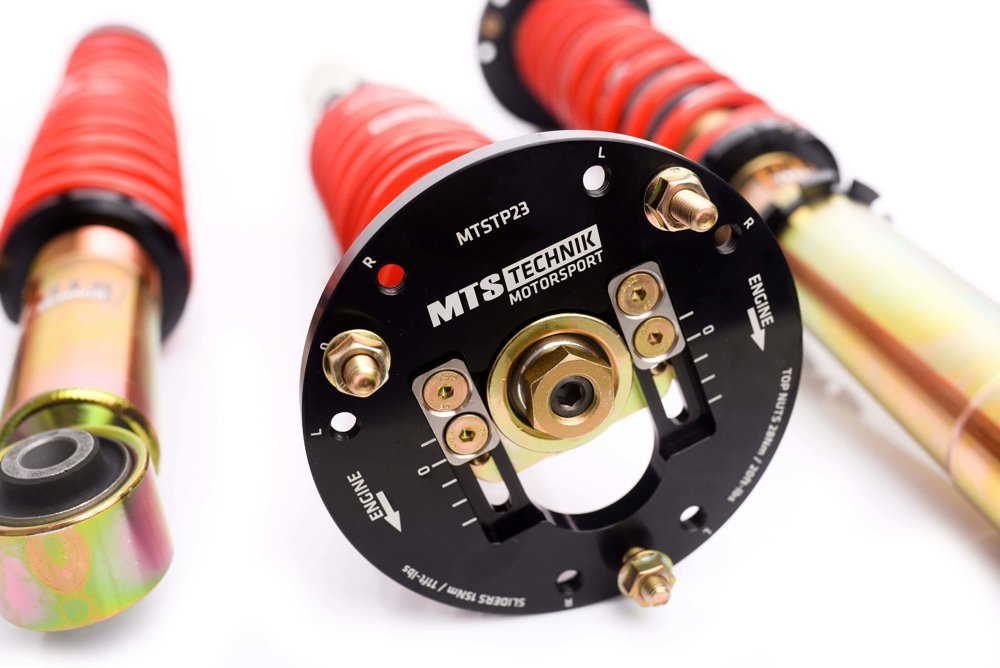

Camber adjustable top mounts The camber plates allow the wheel angle adjustment and increase the precision of driving.
Hexacoil spring perch Innovative hexaCOIL spring perch, significantly increasing the comfort of suspension height adjustment.
Double zinc plated Double zinc plated steel shock absorbers as well as anodized aluminum adjusters and caps to ensure increased corrosion resistance.
Eibach springs Coilover springs made by Eibach, the world leader in the sport springs industry.

Additional Notes

Front and rear axle height adjustable (threaded shock absorber housing)

If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower

During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers

Independent height adjustment at the lower brackets on the front dampers

Set includes 2x upper "camber plates" on the front axle

The installation requires the use of OE front struts - they should be cut and welded as described in the attached manual

In some cases additional OE-parts for the installation of the suspension components are required. Those are not included in the set

Including M-Technik

Suspension compatible only with a rear top mount with an internal diameter of 78mm - OEM number: 33521117657 or 33521126987. It is possible to mount the suspension to cars equipped with other top mounts, but original parts marked with one of the above numbers will be required

In the case of cars equipped with Nivo, it will be required to replace the rear top mounts with OEM: 33521117657 or 33521126987.
